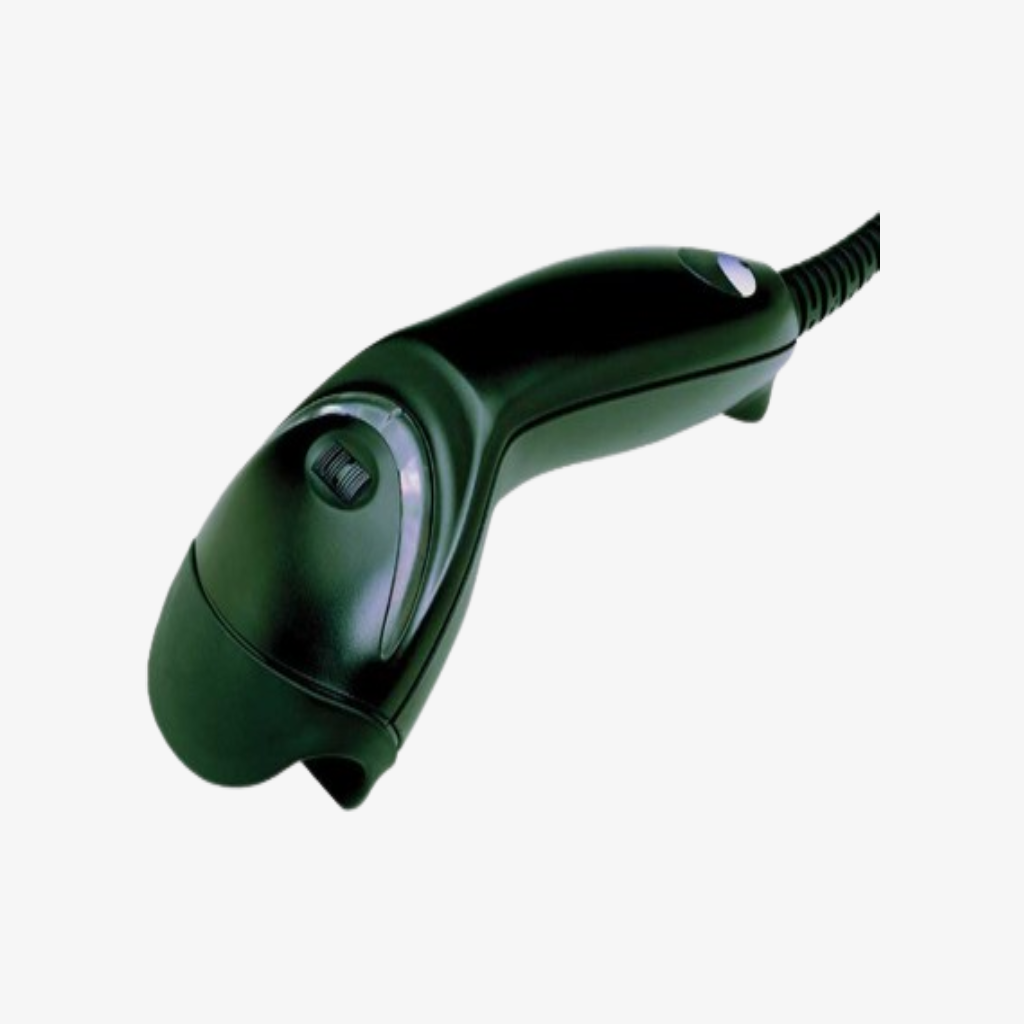

Eclipse 5145
Honeywell’s EclipseTM 5145 is a low-cost laser-based alternative to CCD scanners. Its compact form factor and high-end feature set simplify its use in a variety of applications at the press of a button.
- CodeGate: Quick data transfer for menu scanning with a single button
- CodeSense: Automatically wakes scanner from sleep mode when a bar code is detected
- Flash ROM: Protects POS investment with free firmware updates via MetroSet2 software and standard PC
- Powerlink Cables: Uses the same user-replaceable cables and power supplies such as Voyager® and Orbit®
Description
Honeywell’s EclipseTM 5145 is a low-cost laser-based alternative to CCD scanners. Its compact form factor and high-end feature set simplify its use in a variety of applications at the press of a button.
Eclipse is a single-line, hand-held laser scanner. Equipped with Honeywell’s patented CodeGate® technology, Eclipse can be used in a wide variety of applications. CodeGate® technology allows the user to easily target the desired bar code and complete data transmission with the press of a single button. This makes Eclipse a perfect selection for menu scanning, point-of-sale, document processing, and inventory control.
With Honeywell’s state-of-the-art scanning technology, the Eclipse 5145 has a longer working range and a wider scan field than a typical CCD. The width of the scan line grows as the scanner moves further away from bar codes.
CodeSense® is a unique feature employed by Eclipse in the absence of infrared object detection. It provides the user with a pulsing laser line for barcode detection. When a bar code is detected, the laser line switches to a constant state to allow for scanning via CodeGate®
Additional Information
| Dimensions (L x W x H) | 169 mm x 63 mm x 51 mm (6.7˝ x 2.5˝ 2.0˝) |
|---|---|
| Weight | 100 g (3.5 oz) |
| Operating Power | 675 mW (125 mA @ 5 V) |
| Host System Interfaces | USB, RS232, Keyboard Wedge, IBM 468xx (RS485) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 60°C (-40°F to 140°F) |
| Humidity | 5% to 95% relative humidity, non-condensing |
| Environmental Sealing | Sealed to resist airborne particulate contaminants |
| Scan Pattern | Single scan line |
| Scan Angle | Horizontal: 50° |
| Roll, Pitch, Skew | 68°, 52° |
| Decode Capabilities | Reads standard 1D and GS1 DataBar symbologies. |
| Warranty | 3-year factory warranty |
