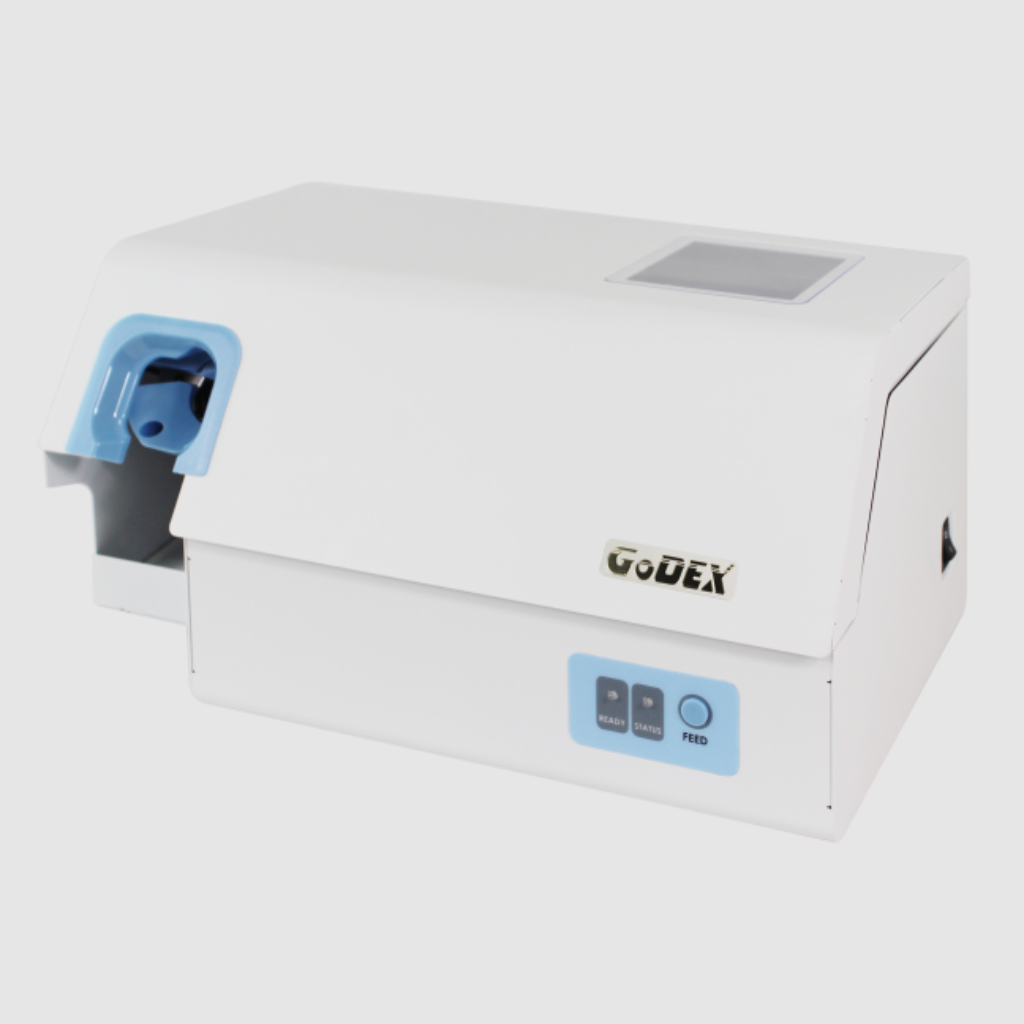

GTL-100
Automated Tube Labeling System
GTL-100 is an automated collection tube labeling system that dispense tube labeled with barcoded 1D/2D as well as texts for patient name and various information vital for tests and clinical managements. GTL-100 is designed to perform at medical examination center, nursing station,bedside and blood collection center, reduce human errors and shorten turn around time.
Specification
Specification
| Print Method | Direct Thermal |
| Resolution | 203 dpi (8 dots/mm) |
| Tubes | Diameter 13-16mm, Length 75-100mm Can use Plastic tubes. |
| Throughput | 3 sec per a labeling |
| Label size | 50(W) x 30(H)mm (standard) |
| Memory | Flash : 128 MB Flash (60 MB for user storage) SDRAM : 32 MB |
| Interfaces | USB2.0, RS-232, Ethernet 10/100 Base-T, USB Host |
| Control Panel | Calibration button, Power on / off button, Control key: FEED |
