HH490

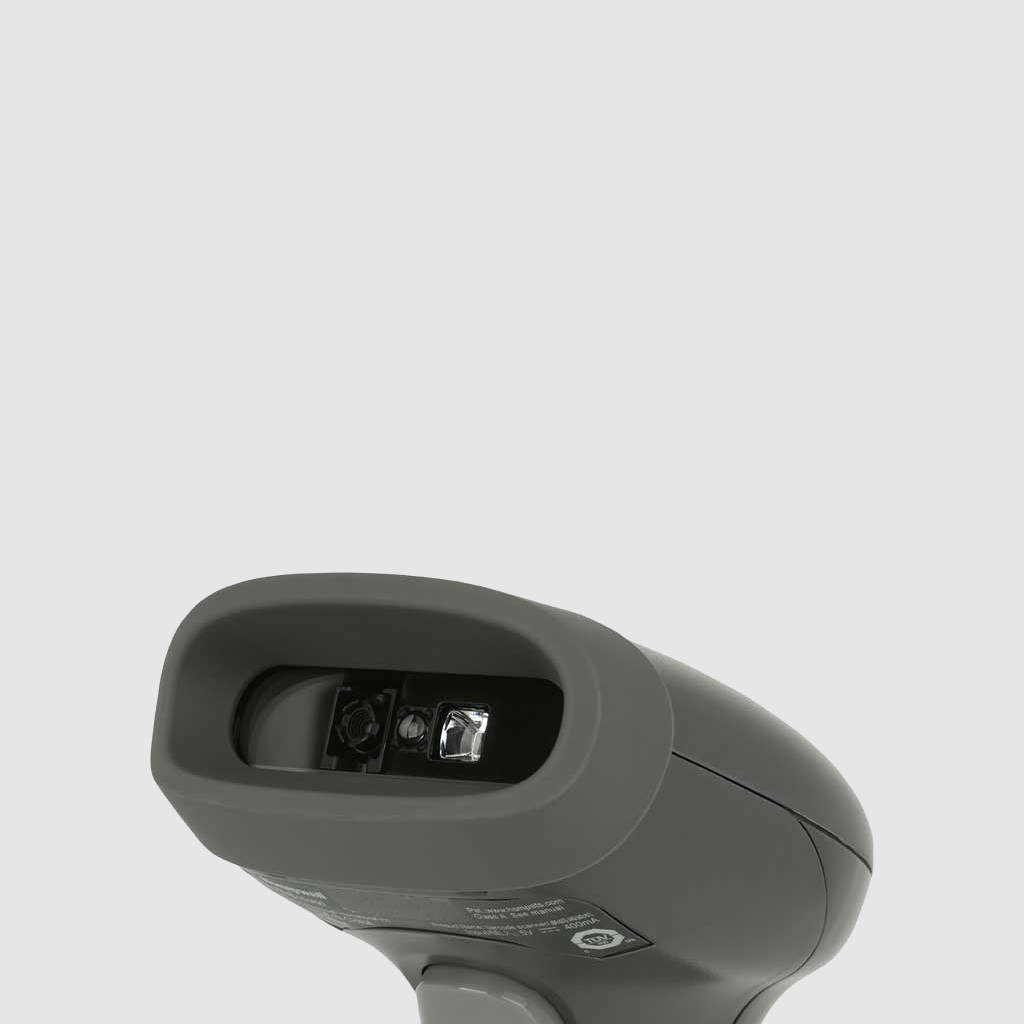

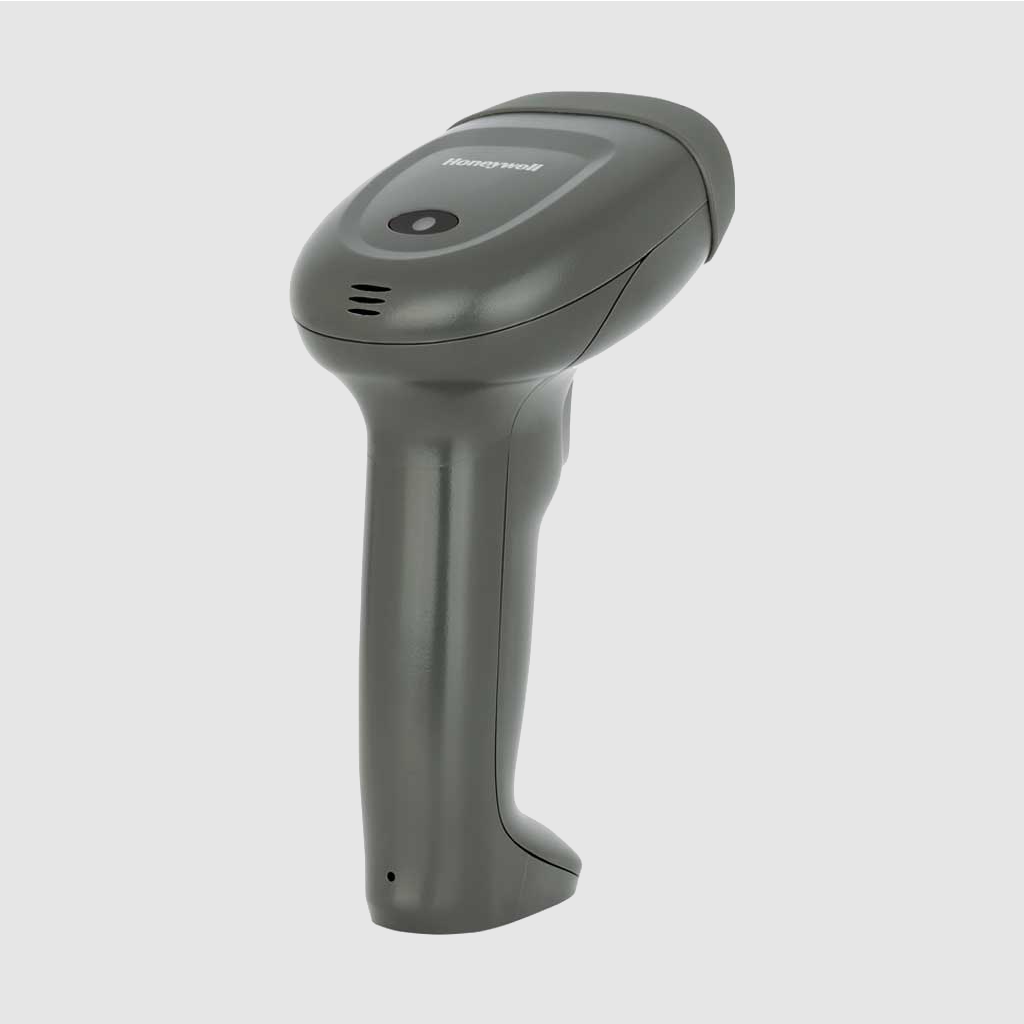

Handheld Scanner HH490 is designed for commercial environments requiring high-speed 1D/2D scanning operations. The imager is able to read bar codes rapidly and continuously, even when reading damaged, partially obscured, or poorly printed bar codes.
Key Features and Highlights:
- Flexibility and Versatility: HH490 excels in reading various codes, from merchandise to government applications
- Industry-Leading Performance: HH490, with a 1GHz MCU, 1MPx camera, and top-tier decoding, excels in reading diverse barcodes, even damaged ones, boosting productivity
- Intelligent Software Tools: HH490 seamlessly integrates with Honeywell’s software tools for easy setup

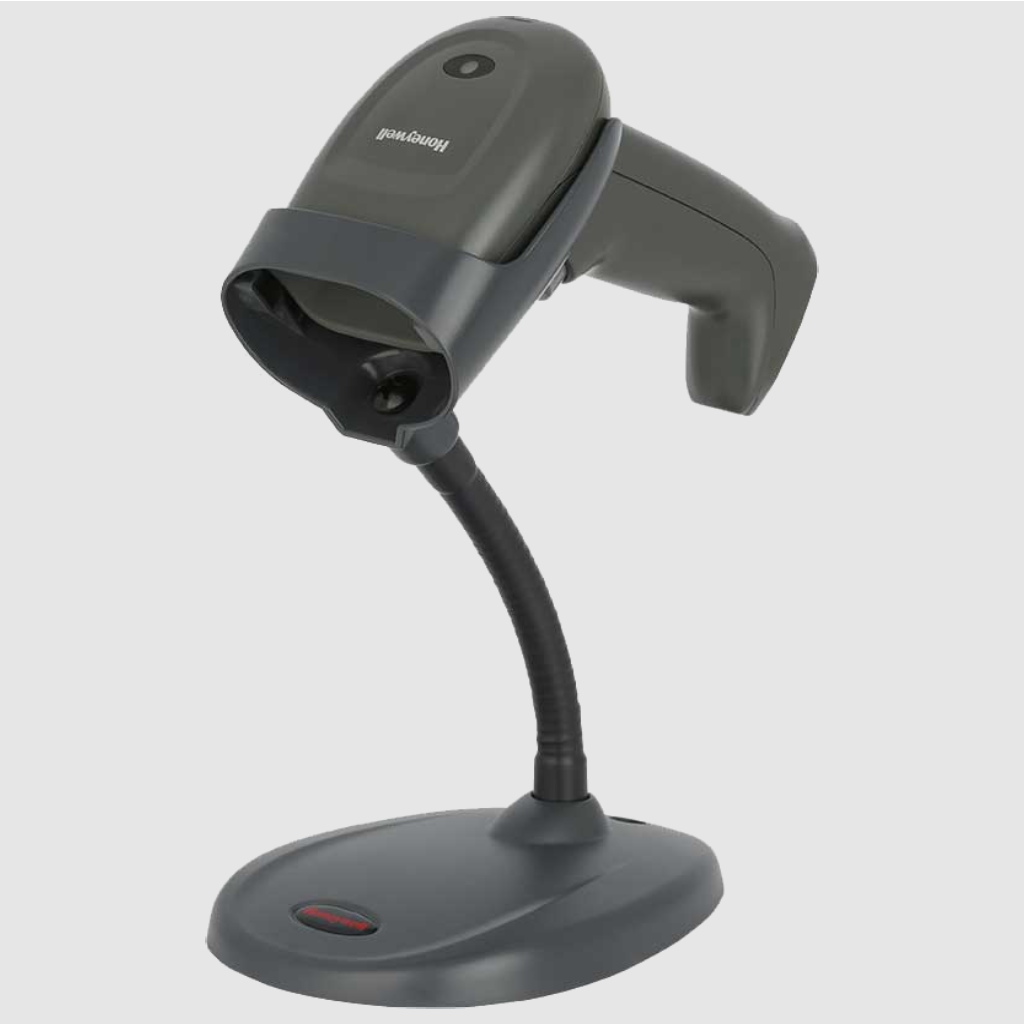

- A Full Range of Accessories: Diverse accessories, from cables to stands, cater to various applications, ensuring compatibility with POS equipment for customer convenience
Description
Additional Information
Description
The handheld scanner HH490 is a new generation of handheld 2D area-imaging scanner, designed to fulfill a wide variety of customers’ scanning needs in various applications and scenarios. Examples include membership identification, payment at shopping malls and supermarkets, hotel registration, applications at hospitals and schools, or any place where data needs to be read and identified quickly.
HH490 offers excellent 1D and 2D barcode scanning performance at an affordable price. It provides fast scanning for a variety of scanning needs, helps customers quickly obtain data, simplifies operational procedures, and greatly improves the management efficiency of your business. Put simply, the HH490 makes scanning easier and faster!
To handle today’s commercial deployment challenges and large-scale infrastructures, the handheld scanner HH490 is equipped with Honeywell’s advanced EZ Config and POS drivers, which greatly simplify the configuration process and saves time. HH490 is fully backward-compatible with existing HH400 accessories, it helps original customers greatly reduce cost and protect original investment.
Additional Information
| Dimensions (L x W x H) | 72.5mm×125mm×154mm |
|---|---|
| Weight | 130 g (4.58 oz) |
| Host System Interfaces | USB, RS-232 |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -40°C to 60°C (-40°F to 140°F) |
| Humidity | 0% to 95% relative humidity, non-condensing |
| Tumble Spec | 250 0.5 m (1.6 ft) tumbles (impacts) Drop: Engineered to withstand 1.2m 2times drop to concrete |
| Scan Pattern | Area Image (1280 x 800, pixel array) |
| Motion Tolerance | up to 75 cm/s for 13 mil UPC at optimal focus |
| Scan Angle | Horizontal: 48° nominal, Vertical: 30° nominal |
| Roll, Pitch, Skew | ±180°, ±60°, ±65° |
| Decode Capabilities | Reads standard 1D, PDF, 2D, and DotCode symbology |
| Warranty | 3-year factory warranty |
