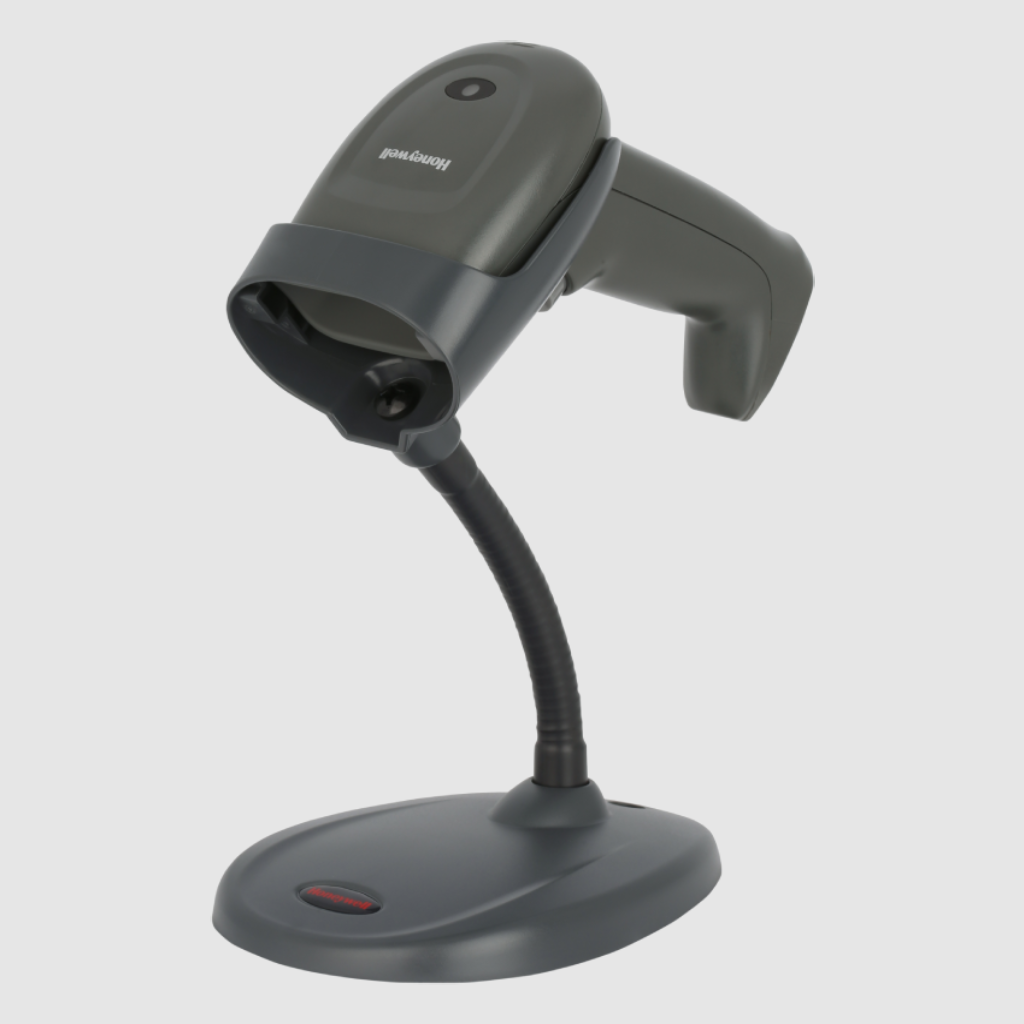

HH490-R1
HH490 is designed for commercial environments requiring high-speed 1D/2D scanning operations. The imager is able to read bar codes rapidly and continuously, even when reading damaged, partially obscured, or poorly printed bar codes.
- Flexibility and Versatility: The HH490 barcode scanner excels in diverse applications, effortlessly reading printed, digital, and government/hospitality codes
- Enhanced Performance: The HH490, featuring a 1GHz MCU, a 1MPx global shutter camera, and top-tier Honeywell decoding tech, excels in reading various barcodes, even damaged ones
- Intelligent Software Tools: The HH490 is seamlessly supported by Honeywell’s EZ Config, OPOS/JPOS drivers, POSNET4, SMU, and plug-ins
- A Full Range of Accessories: We offer a comprehensive range of accessories, such as USB cables, RS232 cables, stands, and power supplies
Description
The HH490 is a new generation of handheld 2D area-imaging scanner, designed to fulfill a wide variety of customers’ scanning needs in various applications and scenarios. Examples include membership identification, payment at shopping malls and supermarkets, hotel registration, applications at hospitals and schools, or any place where data needs to be read and identified quickly.
HH490 offers excellent 1D and 2D barcode scanning performance at an affordable price. It provides fast scanning for a variety of scanning needs, helps customers quickly obtain data, simplifies operational procedures, and greatly improves the management efficiency of your business. Put simply, the HH490 makes scanning easier and faster!
To handle today’s commercial deployment challenges and large-scale infrastructures, the HH490 is equipped with Honeywell’s advanced EZ Config and POS drivers, which greatly simplify the configuration process and save time. HH490 is fully backward-compatible with existing HH400 accessories, it helps original customers greatly reduce cost and protect original investment.
Additional Information
| Dimensions (L x W x H) | 72.5mm×125mm×154mm (2.85 in 4.92 in 6.06 in) |
|---|---|
| Weight | 130 g (4.58 oz) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -40°C to 60°C (-40°F to 140°F) |
| Humidity | 0% to 95% relative humidity, non-condensing |
| Tumble Spec | 250 0.5 m (1.6 ft) tumbles (impacts) Drop: Engineered to withstand 1.2m 2times drop to concrete |
| Scan Angle | Horizontal: 48° nominal, Vertical: 30° nominal |
| Roll, Pitch, Skew | ±180°, ±60°, ±65° |
| Operating Power | 2 W (400 mA @ 5V DC) |
| Standby Power | 0.55 W (110 mA @ 5V DC) |
| Host System Interfaces | USB, RS-232 |
