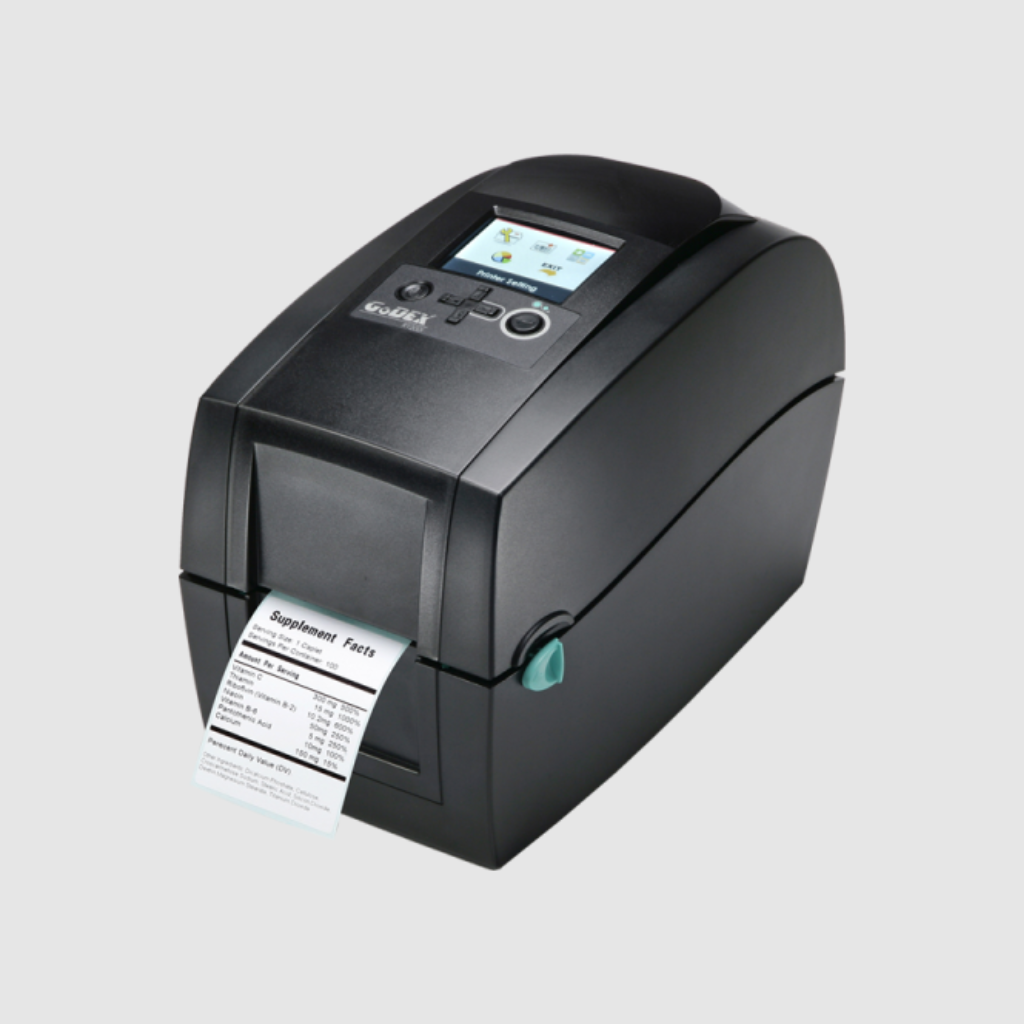

RT200i / RT230i
Mini Barcode Label Printer, with Industrial Performance
The RT200i barcode printer is packed with performance enhancing features that makes it the most powerful 2” thermal transfer printer.

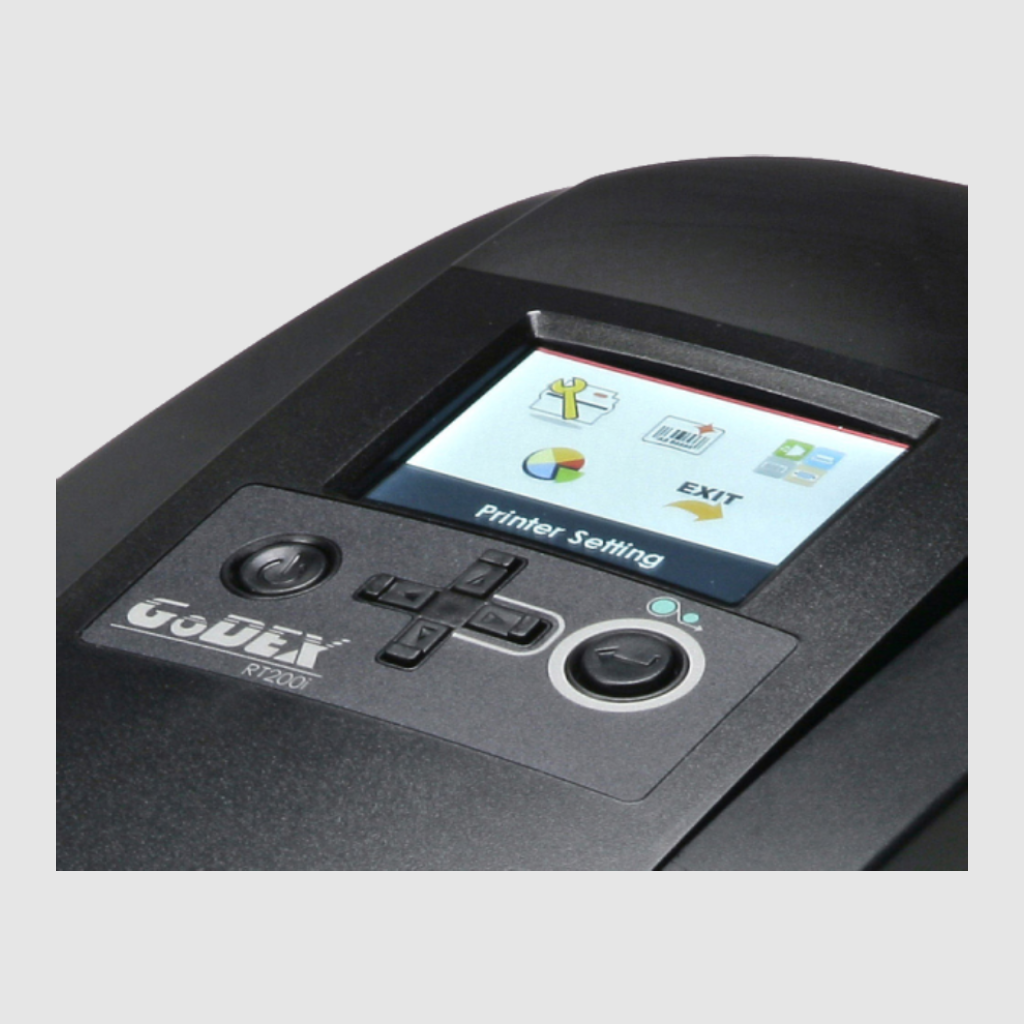

- Color LCD and operation panel for easy and intuitive operation

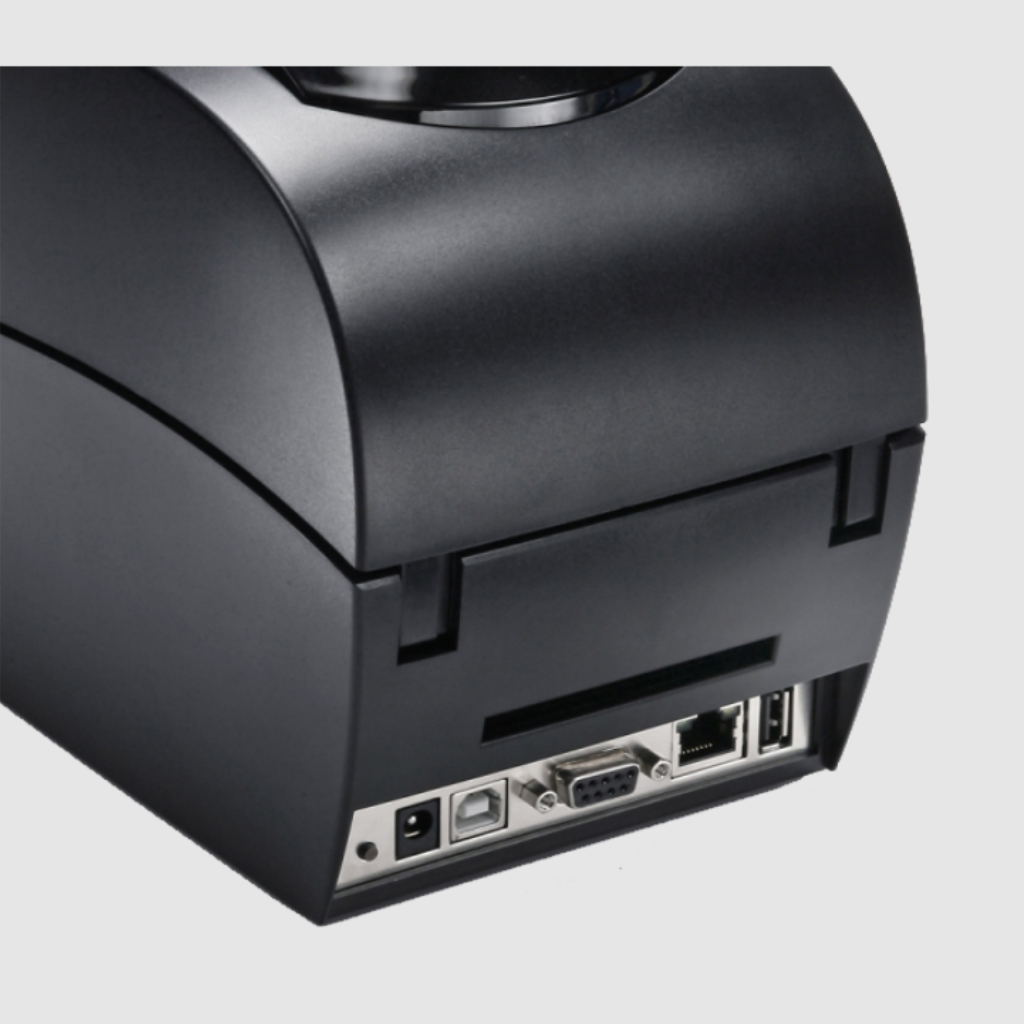

- Ethernet, Serial and USB ports are standard features adding flexibility and power
- Maximum 7 IPS printing speed
- USB host for extension memory and standalone operation

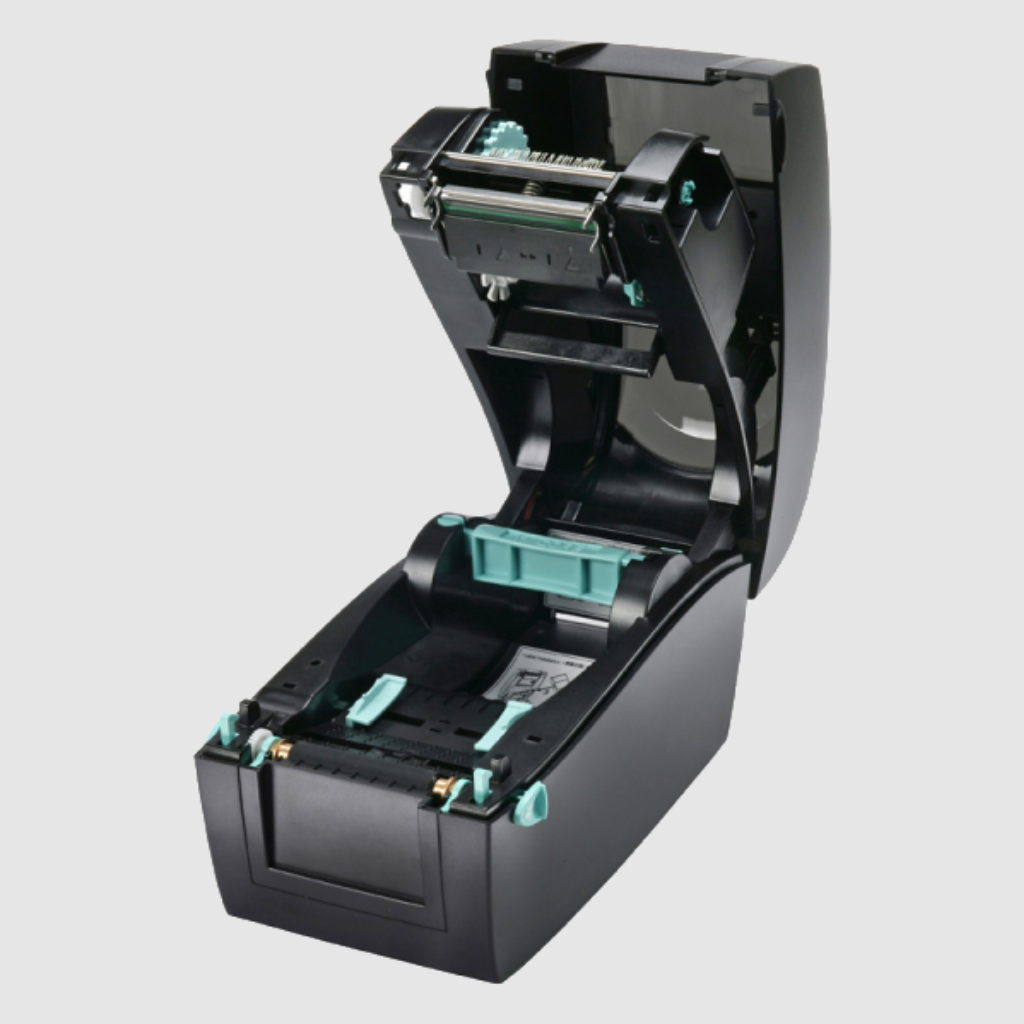

- Compact size and modern clam-shell design
- Innovative calibration button makes Label Calibration simple and fast
- EZPL, GEPL and GZPL language support
- Free GoLabel label design software
Specifications
User Manual
Quick guide
Specifications
| Print Method | Thermal Transfer / Direct Thermal |
| Resolution | 203 dpi (8 dots/mm) / 300 dpi (12 dot/mm) |
| Print Speed | 7 ips (177 mm/s) / 5 ips (127 mm/s) |
| Print Width | 2.12” (54 mm) / 2.24” (56.9mm) |
| Print Length | Min. 0.16” (4 mm)** ; Max . 68” ( 1727 mm) / Min. 0.16” (4 mm)** ; Max. 30“(762 mm) |
| Processor | 32-bit RISC CPU |
| Memory | Flash: 8 MB Flash (4 MB for user storage), SDRAM : 16 MB |
| Interfaces | • USB 2.0 (B-Type) • Serial port: RS-232 (DB-9) • Ethernet port (RJ-45) • USB Host (A-Type) |
| Ribbon | Length: 360’ (110 m) Width: 2.20” (56mm) – 2.32” (59mm) Core diameter: 0.5” (12.7 mm) |
| Control Panel | • Color TFT LCD with navigation button • Power on/off button • Calibration button • Control key: FEED |
User Manual
| GE200i Series User Manual | Download |
Quick guide
| GE200i Quick guide | Download |
